1352837 Crown As Engine 135-2837 Ring Rs2629288 Ring Set Piston Cylinder Liner 262-9288

Product Categories
Guangzhou Tianhe District Zhuji Fengtu Mechanical Equipment Sales Department
Contact Now

1352837 Crown As Engine 135-2837 Ring Rs2629288 Ring Set Piston Cylinder Liner 262-9288

Brand Name : Caterpillar

Model Number : 3406E

Certification : 68555435543

Place of Origin : China

MOQ : 1

Price : Price negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 10

Delivery Time : 3-5

Packaging Details : box

model OEM : 3406E

product name : 1352837 CROWN AS-PISTON Caterpillar parts

cross code : CA1352837 135-2837 1352837

other name : Piston Kit

sort : Cylinder Liner

application : Engine Parts

applicable : Excavator Parts

Weight : XX kg.

Contact Now

1352837 CROWN AS-PISTON Caterpillar parts 3406E
Product Description

CA1352837
135-2837
1352837

TRUCK ENGINE 3406E Caterpillar
3406E Truck Engine 5EK00001-01820

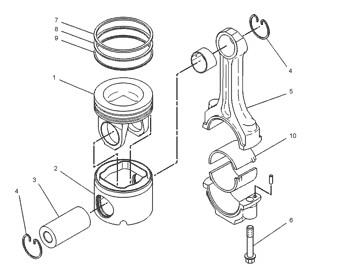

  • 348-7346: PARTS GP-ENGINE OVERHAUL » SEBP21860328

PARTS GP-ENGINE OVERHAUL

348-7346 PARTS GP-ENGINE OVERHAUL
PART OF 356-6808, 356-6810, 356-6811 PARTS GP-ENGINE OVERHAUL
FOR USE WITH IN FRAME OVERHAUL FOR THE 3406E ON HIGHWAY TRUCKS WITH LESS THAN 455 HP, (110-9643, 5EK1-UP), (134-1700, 6TS1-20554)
FIELD INSTALLATION

Information

Pos.Part NoQtyParts nameComments
348-7073 Y[1]KIT-ENGINE OVERHAUL (BRONZE)
111-8606[6]BOLT-SPECIAL (OIL JET)
135-2837[6]CROWN AS-PISTON
(EACH INCLUDES)
0R-8333[1]CYLINDER PACK GP
197-9322 N[1]LINER-CYLINDER BLOCK
7E-1177 N[2]RETAINER-PIN
7N-7078 N[1]RING-PISTON (OIL CONTROL)
134-3761 N[1]RING-PISTON (TOP)
144-5902 N[1]RING-PISTON (INTERMEDIATE)
160-9874[1]KIT-GASKET (SINGLE CYLINDER LINER)
9L-5854[1]BAND-FILLER (130.2-MM ID)
110-2220[1]SEAL-LINER
142-6217[1]SEAL-O-RING
142-7072[1]SEAL-LINER
0R-3780[1]ROD AS-CONNECTING
6I-2726[1]BUSHING
7E-4195 M[2]BOLT-CONNECTING ROD (M16X1.5X97-MM)
7N-2043[2]DOWEL
166-3650[6]JET AS-PISTON COOLING
160-9874[6]KIT-GASKET (SINGLE CYLINDER LINER)
(EACH INCLUDES)
9L-5854[1]BAND-FILLER (130.2-MM ID)
110-2220[1]SEAL-LINER
142-6217[1]SEAL-O-RING
142-7072[1]SEAL-LINER
197-9322[6]LINER-CYLINDER BLOCK
524-5613[6]PIN-PISTON
9Y-1792[1]RETAINER
7E-1177[12]RETAINER-PIN
7N-7078[6]RING-PISTON (OIL CONTROL)
134-3761[6]RING-PISTON (TOP)
144-5902[6]RING-PISTON (INTERMEDIATE)
130-0241[6]SKIRT-PISTON
OEM
1168154 Piston AEngine116-8154RingRs2382698 Ring Set PistonCylinder Liner
1303987 Ring TopEngine130-3987RingRs2382720 Ring Set PistonCylinder Liner
1352837 Crown AsEngine135-2837RingRs2629288 Ring Set PistonCylinder Liner
1440502 Ring KitEngine144-502RingRs3145005 Ring Set PistonCylinder Liner
1453031 Piston AEngine145-3031RingRs3569946 Ring Set PistonCylinder Liner
1461780 Ring KitEngine146-1780RingTak3102T Piston Liner KitCylinder Liner
1475860 Piston AEngine147-5860RingTak5250 Piston Kit(See T)Cylinder Liner
1495566 Crown AsEngine149-5566Ring1003415 Control Piston KitCylinder Liner
1521390 Piston AEngine152-1390Ring1618919 Motor Group PistonCylinder Liner
1352837 Crown As Engine 135-2837 Ring Rs2629288 Ring Set Piston Cylinder Liner 262-9288











China 1352837 Crown As Engine 135-2837 Ring Rs2629288 Ring Set Piston Cylinder Liner 262-9288 factory

1352837 Crown As Engine 135-2837 Ring Rs2629288 Ring Set Piston Cylinder Liner 262-9288 Images
